Flange Ventilation Butterfly Valve

Introduction:

Flange ventilation butterfly valve is a non closed butterfly valve, widely used in building materials, metallurgy, mining, electricity and other production process medium temperature Less than or equal to 300 degree nominal pressure 0.1mpa on the pipeline, to connect, open and close or adjust the flow of media. The valve body and valve plate are made of steel plate welding, with the characteristics of short size, light weight and convenient installation. The valve drive torque is small, open and close flexible, easy to operate.

Application:

Flanged ventilated butterfly valve is widely used in gold, chemical, electric power, building materials, mining and other industrial pipelines, gas control or regulation of the medium.

Description:

Flange ventilation butterfly valve structure features:

1, ventilation butterfly valve design novel, reasonable, unique structure, light weight, fast opening and closing.

2, butterfly valve operating torque is small, easy to operate, labor-saving dexterity.

3, the use of suitable materials to meet the low, medium, high medium temperature and corrosive medium.

4, no connecting rod, bolt, etc., reliable work, long service life, not affected by the flow of medium.

Specification:

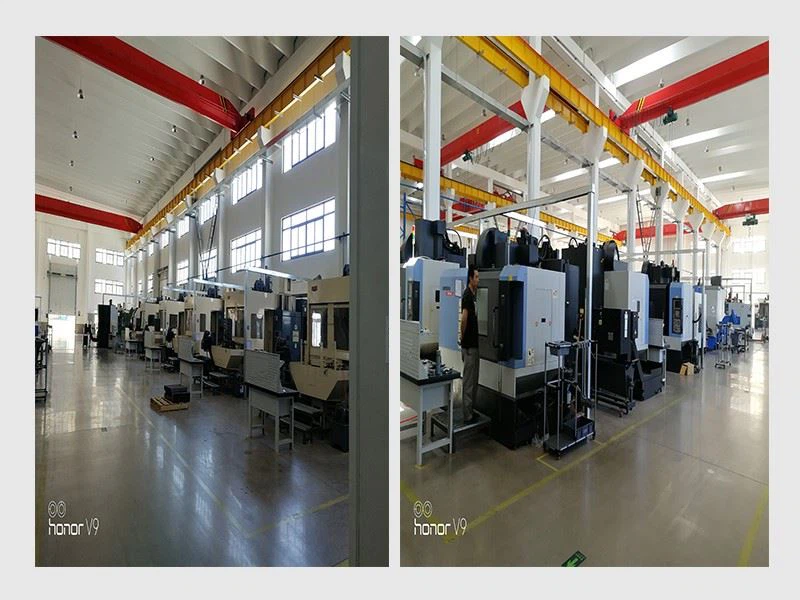

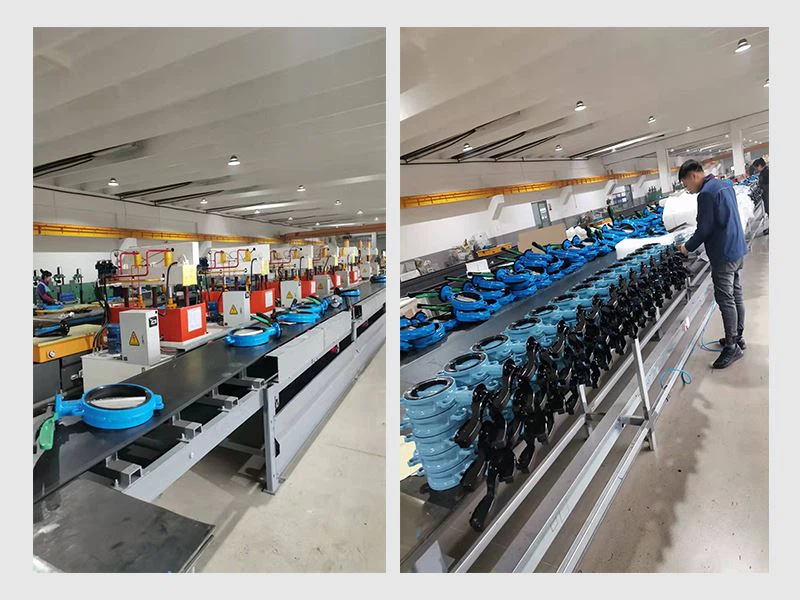

PACKINGWORKSHOP

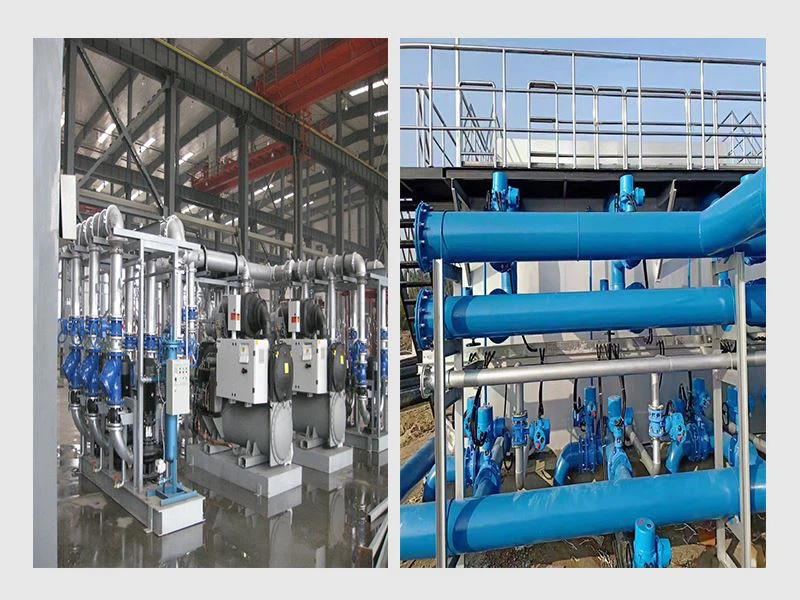

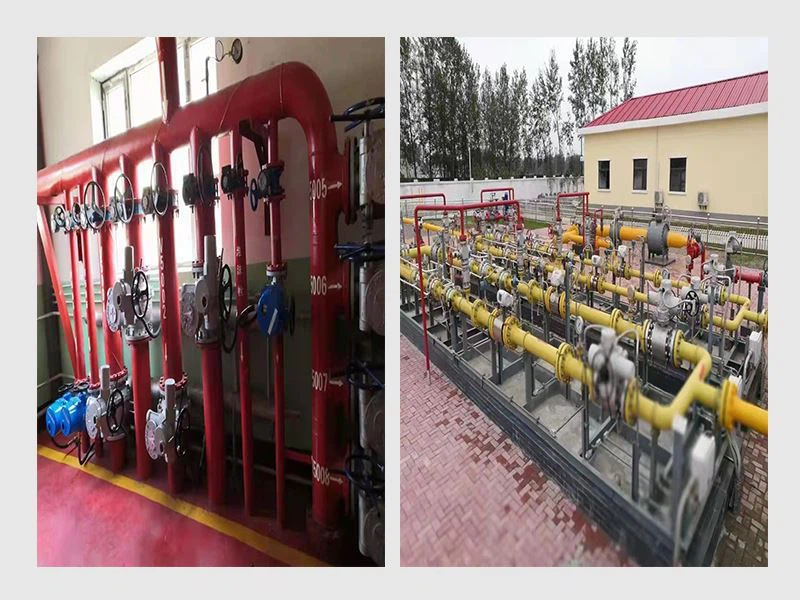

APPLICATION

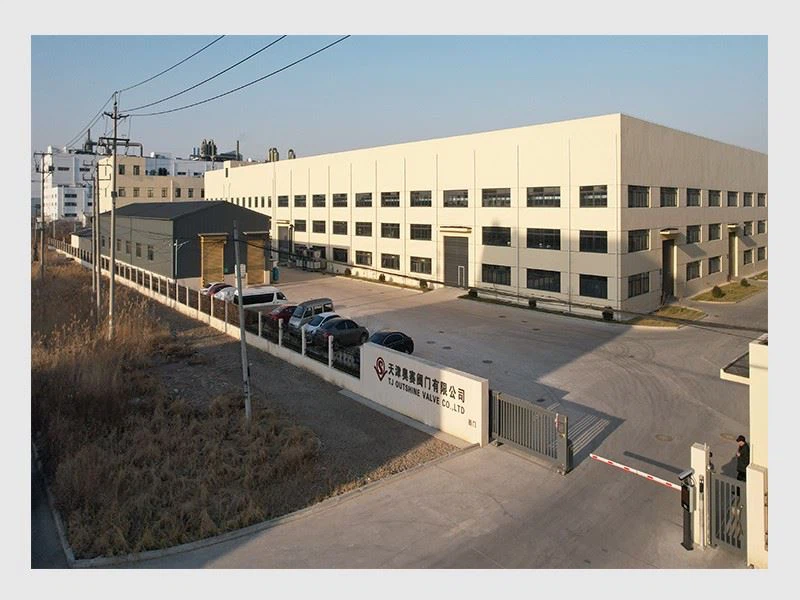

FACTORY
